Rincian produk
Place of Origin: China
Nama merek: MARSHINE
Sertifikasi: CE UL ROHS
Model Number: JJCS-50T
Syarat Pembayaran & Pengiriman
Minimum Order Quantity: 1PC
Harga: usd ，5000-6000 ， set
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Model NO.: |
JJCS50T |
Condition: |
New |
Feature: |
Explosion-Proof |
Moderate Speed: |
18.9/9.1 M/Min |
Traction Speed: |
2600 M/Min |
Tonnage: |
5t |
Driven Type: |
Hydraulic |
Product Name: |
Diesel Winch |
Transport Package: |
Carton Box |
Specification: |
5t |
Trademark: |
MARSHINE |
Origin: |
China |
HS Code: |
8467890000 |
Supply Ability: |
30PCS/Day |
Package Size: |
230.00cm * 130.00cm * 120.00cm |
Package Gross Weight: |
700.000kg |
Type: |
Diesel Engine |
Sertifikasi: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
about shipping cost and estimated delivery time. |
Return&refunds: |
You can apply for a refund up to 30 days after receipt of the products. |
Model NO.: |
JJCS50T |
Condition: |
New |
Feature: |
Explosion-Proof |
Moderate Speed: |
18.9/9.1 M/Min |
Traction Speed: |
2600 M/Min |
Tonnage: |
5t |
Driven Type: |
Hydraulic |
Product Name: |
Diesel Winch |
Transport Package: |
Carton Box |
Specification: |
5t |
Trademark: |
MARSHINE |
Origin: |
China |
HS Code: |
8467890000 |
Supply Ability: |
30PCS/Day |
Package Size: |
230.00cm * 130.00cm * 120.00cm |
Package Gross Weight: |
700.000kg |
Type: |
Diesel Engine |
Sertifikasi: |
CE, ISO |
Customized: |
Customized |
Shipping Cost: |
about shipping cost and estimated delivery time. |
Return&refunds: |
You can apply for a refund up to 30 days after receipt of the products. |

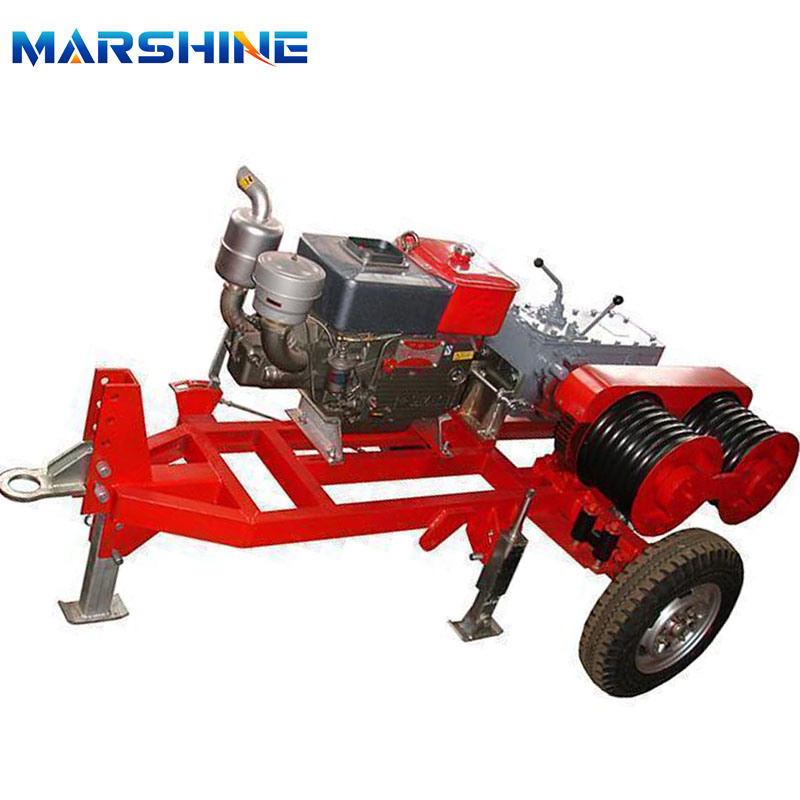

Five Ton Dual Bull Wheel Powered Diesel Winch For Pulling And Tension
Our five ton dual bull wheel powered winch offers wide applications. For instance, it can hoist the mechanical equipment sets or erect the pole pylon. Also, it is able to haul and string the conductors. This product can be applied in posts and telecommunications, as well as electric power line. For convenient transportation, the whole machine is mounted on a framework with wheel hub.
Uses: Apply to hoisting mechanical equipments and erecting pole pylon, hauling and stringing conductors for Postal and Telecommunications and electric power lines.
Featrues: This trailer type winch machcine is easy for transportation.
Technical Parameters
| Item Number | 09162 | |
| Model | JJCS-50T | |
| Engine | Model | S195G |
| Power (kW) | 9 | |
| Speed (rpm) | 2000 | |
| Traction Force (kN)/Pulling Speed (rpm) | I.III | 50/3.1.40/9.6 |
| II.V | 45/7.1.17/22.3 | |
| IV.VI | 33/11.3.10/35.6 | |
| Reverse | -/7.35 | |
| Diameter of Drum Bottom (mm) | Φ300 | |
| Form of Wire Winding | Manual | |
| Weight (kg) | 700 | |
| Overall Dimension (mm) | 2230×1210×1135 | |
To support the Transmission work, Marshine Power has Tubular Gin Pole, Hydraulic cable puller, wire rope pulley block, Power Cable Winch, Anti-twisting cable rope, Cable reel spool and stand- all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like emergency restoration tower and crossing structure, we can customized, and the safety tools and accessories, are not demanded the MOQ. You can freely help you out either Tech issue or Products requirements. Pls approach us. Thanks.
